AccelTex - The Accelerator - Site Survey Battery Pack v2

AccelTex Solutions' new battery pack - The Accelerator - is designed specifically for use in field surveys. Its small, compact design and battery capacity allow for hours of continuous use. It is the ultimate site survey tool and a must-have for all Wi-Fi technicians.

Features:

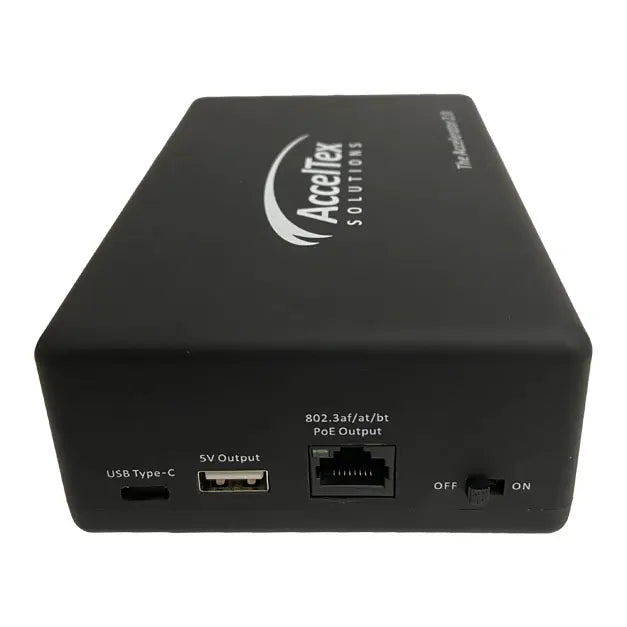

• PoE output (802.3af/at/bt).
• USB-C
• Lightweight and portable
• Integrated threaded insert
• Charging while in use
• LCD display toggles between battery level and voltage
• USB 2.0
• 12V output (3A)

Advantages

• Provides isolated and uninterrupted power supply
• Fast charger (4 hours)
• Compact and portable

Normal operation

• Both USB ports are for power supply only
• Charge the battery to 100% before first use.
• Turn on the USB and POE ports by setting the toggle switch to "ON".

Important Notes

• The USB port is only active when the toggle switch is in the "ON" position.
• The 12 V output is always on (with built-in circuit protection).
• Set the toggle switch to the "OFF" position when not in use.
• When you set the toggle switch in the "ON" position, the battery will gradually discharge.
• Use only the charger supplied with the battery pack. Do not use an aftermarket or third-party charger.
• In accordance with FAA and U.S. DOT regulations, the Accelerator can be transported by air can be transported in its carrying case in a carry-on bag. TSA Security, Individual airlines and international regulations may be more restrictive at times.
• Battery percentage fluctuates when you plug in or unplug the charger.

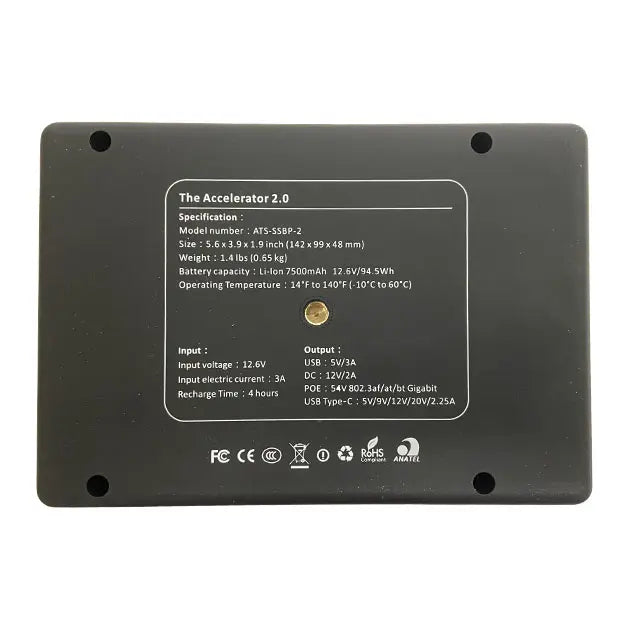

Mechanical Specifications

• Battery dimensions: 5.5" H x 3.9" W x 1.875" D (140 mm H x 100 mm W x 48 mm D)
• Battery color: Black
• Battery weight: 1.45 lbs (0.66 kg)
• Threaded insert: 1/4" x 20

Electrical Data

• Operating voltage: 110 - 220V
• Battery input (2.1mm): 12.6V DC, 3A
• Battery output (2.1mm): 12V, 2A
• LAN input: 10/100
• PoE output: IEEE 802.af and 802.3bt (type 3 and 4) compliant
• USB 2.0 output: 5V DC, 2A
• USB-C output: Up to 20V, 2.25A
• Battery type and capacity: Li-Ion 7500 mAh 12.6V/94.5Wh
• Battery charging time: 4 hours

Environmental Specifications

• Operating environment: Indoor/outdoor. Do not expose directly to the elements.
• Operating temperature: 14 to 140°F (-10 to 60°C)

Travel Notices

• Since the Accelerator is less than 100Wh, it can be shipped by FedEx Air if properly labeled.
• The Accelerator complies with UN standard UN3481.
• In accordance with FAA and U.S. DOT regulations, the Accelerator may be transported in a carry-on bag for air travel
• transported if it is in its carry-on bag. Security regulations of TSA, individual airlines, and international organizations may be more restrictive at times.
• If you have concerns about a particular country or airline, you must contact that country or airline to ensure compliance
